1. What is a C-Wire Adapter?
As smart thermostats become increasingly popular in households, more and more users are looking to upgrade to smart thermostats to achieve more efficient energy management and convenient control. However, many users encounter a common issue during installation: the lack of a C-Wire (Common Wire).
The C-Wire is essential for running smart thermostats, as it provides a continuous power supply to support advanced features such as Wi-Fi connectivity, touch screen displays, and learning algorithms. Traditional HVAC (Heating, Ventilation, and Air Conditioning) or heat pump systems often lack a C-Wire, forcing users to seek alternative solutions when upgrading to smart thermostats.
The C-Wire Adapter was developed to address this problem. It works by redistributing existing HVAC wiring to create a virtual C-Wire, providing stable power to smart thermostats without the need for complicated rewiring or expensive equipment replacements.
2. Functions of the C-Wire
| Function | Description |
|---|---|
| Provides Continuous Power | The C-Wire delivers a constant 24VAC power supply to smart thermostats to support their core functions. |
| Supports Advanced Features | Smart thermostats rely on the C-Wire for features like Wi-Fi, touch screens, remote control, and learning algorithms, which traditional thermostats do not require. |
Without a C-Wire, systems often resort to "power stealing," which intermittently draws power from the R-Wire or other control lines. This can lead to unstable power supply, affecting the performance of smart thermostats. For example, the device might lose its connection to Wi-Fi or respond sluggishly to commands.
3. Applications of the C-Wire Adapter
The C-Wire Adapter is an ideal device for resolving the lack of a C-Wire in HVAC systems. By adjusting the existing wiring, it simulates the function of a C-Wire to ensure proper operation of smart thermostats. Common applications include:
3.1. Providing Power for Smart Thermostats
- Smart thermostats require a low current, continuous power supply, which cannot be delivered by traditional R (power) and W (heating control) wires.
- The adapter reconfigures existing wires (e.g., G or Y wires) to supply an equivalent C-Wire power source.
3.2. Compatibility with Legacy Systems
- Many older HVAC systems and heat pumps do not have a dedicated C-Wire connection, complicating upgrades to smart thermostats.
- The C-Wire Adapter ensures compatibility with these systems, avoiding costly rewiring or equipment replacement.
3.3. Simplifying Installation
- Traditional rewiring may involve cutting walls, adding wires, or reconfiguring the HVAC control board.
- Using a C-Wire Adapter achieves the C-Wire function quickly, saving time and labor.
4. How a C-Wire Adapter Works
C-Wire Adapters work by redistributing existing wiring or extending the HVAC control interface to create a virtual C-Wire, providing power to smart thermostats. Key working methods include:
4.1. Reusing the G-Wire (Fan Control Wire)
- Reconfigures the G-Wire as a C-Wire while maintaining fan control through hardware or software.
- Advantages: No additional wiring required; compatible with most systems.
- Considerations: May require adjustments to fan control logic.
4.2. Parallel Power Supply
- Splits power from the R-Wire (24VAC) and other control wires (e.g., W or Y) to provide a stable low-current supply.
- Advantages: Flexible installation, suitable for multi-function HVAC systems.
4.3. Dedicated C-Wire Generation
- Extends the HVAC control board interface to generate a dedicated C-Wire.
- Advantages: Suitable for complex multi-stage heating or cooling systems with stable operation.
5. C-Wire Connection Methods
5.1. C-Wire and Standard Interface Logic
| Terminal | Function Description | Connection Logic |
|---|---|---|
| R (Power) | Supplies 24VAC power | Connect R to the thermostat's R terminal; the C-Wire completes the circuit for power supply. |
| C (Common) | Provides continuous power | Connect C to the thermostat's C terminal to enable advanced features like Wi-Fi. |
| W (Heating) | Activates heating systems | Connect W to the heating device; the C-Wire supplies independent power. |
| Y (Cooling) | Activates cooling systems | Connect Y to the cooling device; the C-Wire supplies independent power. |
| O/B (Reversing Valve) | Switches heat pump modes between heating and cooling | Connect O/B to the reversing valve; the C-Wire powers the thermostat. |
This configuration ensures the C-Wire can deliver stable power to the thermostat while supporting heating, cooling, and fan functions.
5.2. Installing a C-Wire Adapter
The C-Wire Adapter is typically installed near the HVAC control board (often within the furnace or air handler). It redistributes existing wires to generate a "virtual" C-Wire. Common installation locations include:
a. On the HVAC Control Board
- The most common location, connected directly to the control board.
- Control boards are usually located inside:
- Furnaces (gas or electric).
- Air handlers (for heat pumps).
b. Near the Thermostat
- Installed behind or near the thermostat to avoid HVAC equipment disassembly.
- Suitable for users with limited tools who prefer a simple installation.
c. Standalone Power Modules
- If direct HVAC connection is not possible, standalone power modules can plug into a wall outlet to power the thermostat without modifying existing wiring.
6. Steps to Install a C-Wire Adapter
6.1. Check for Missing C-Wire
- Inspect the HVAC control board and thermostat wiring layout.
- If no C-Wire or C terminal is available, proceed with installing a C-Wire Adapter.
6.2. Choose a Compatible Adapter
- Select a C-Wire Adapter compatible with your HVAC system and smart thermostat brand (e.g., Nest Power Connector, Honeywell C-Wire Adapter, or Grus EcoNet-TU).
6.3. Connect the Adapter to the HVAC Control Board

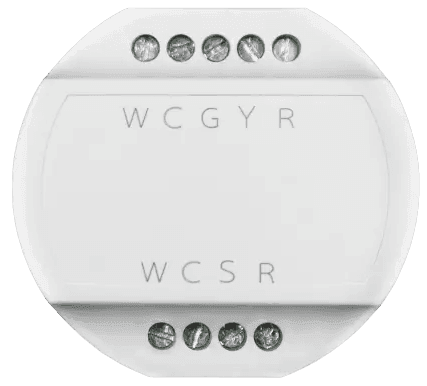

| Adapter Input Terminal | Function Description | Connect to HVAC Control Board |
|---|---|---|
| R | Power | HVAC control board's R terminal |
| C | Common Wire | HVAC control board's C terminal or generated by the adapter |
| W | Heating Control | HVAC control board's W terminal |
| Y | Cooling Control | HVAC control board's Y terminal |
| G | Fan Control | Maintain existing fan connection |
6.4. Connect the Adapter to the Thermostat
| Adapter Output Terminal | Function Description | Connect to Thermostat Terminal |
|---|---|---|
| W | Heating control signal to activate heating | Thermostat's W terminal |
| C | Common Wire to provide continuous power | Thermostat's C terminal |
| S | Signal control for special instructions | Thermostat's signal terminal (if supported) |
| R | Power (24VAC) to supply the thermostat | Thermostat's R terminal |
6.5. Test the System
- Restore HVAC system power and verify the thermostat is functioning correctly.
- Test heating, cooling, and fan functions to confirm proper connection.
7. Popular C-Wire Adapters Compared
| Brand | Features | Ideal Application |
|---|---|---|
| Grus EcoNet-TU | Compatible with multiple brands, supports complex systems | HVAC and heat pump systems, multi-stage heating/cooling |
| Nest Power Connector | Designed specifically for Nest thermostats, easy to install | Single-stage heating/cooling systems |
| Honeywell C-Wire Adapter | Compact design, ideal for Honeywell smart thermostats | Single or multi-stage heating/cooling |
| Ecobee Power Extender Kit | Included with Ecobee thermostats, supports advanced functions | Multi-stage heating/cooling, complex HVAC systems |
The C-Wire Adapter is a convenient solution for creating a C-Wire without requiring rewiring. By selecting the right adapter and following the standard installation process, users can enjoy the full benefits of a smart thermostat with minimal effort. Whether you use Nest, Honeywell, or Ecobee, the right adapter choice and installation can help upgrade your HVAC system to provide a smarter and more efficient home heating and cooling experience.
