Physical dimensions
Overall size and enclosure clearance
Manual overall dimensions: 90 × 35 × 65 mm. The drawing labels the body and projection separately; confirm the required clearance with a qualified installer.
WattNet-3R | Energy Monitoring

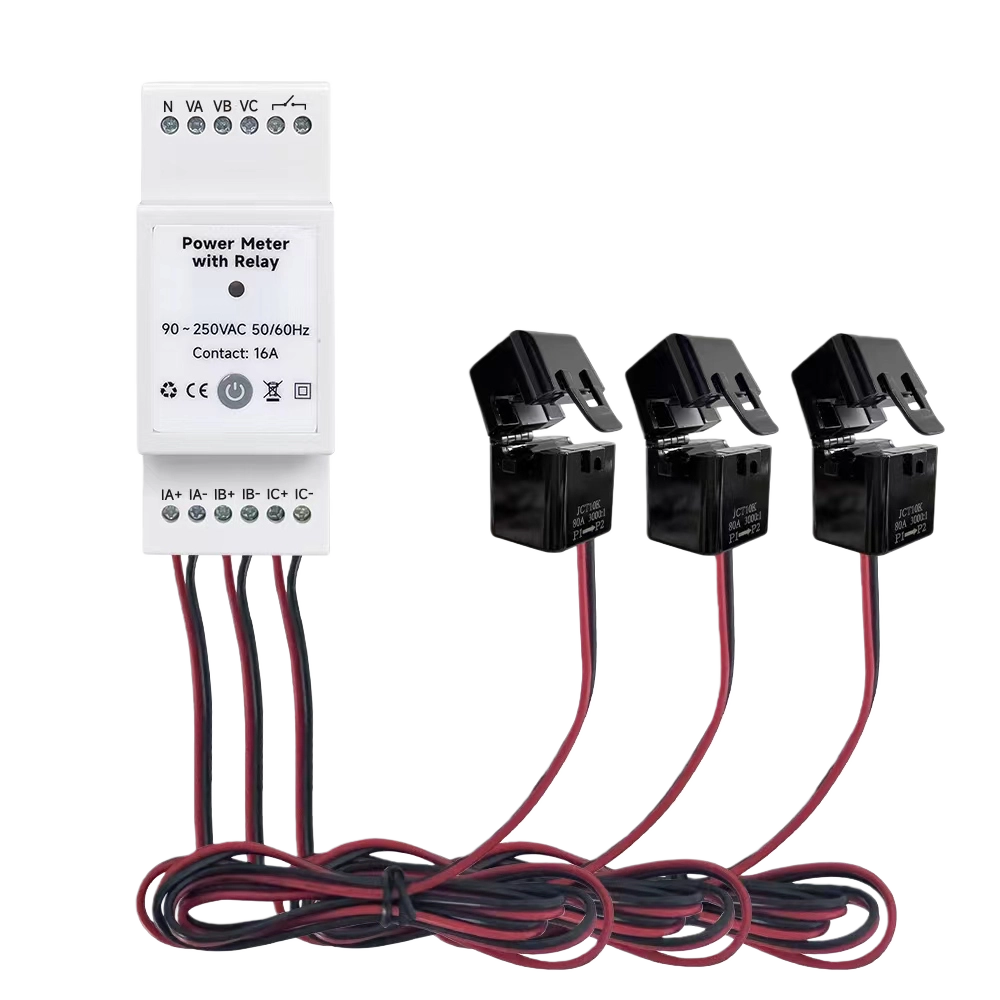

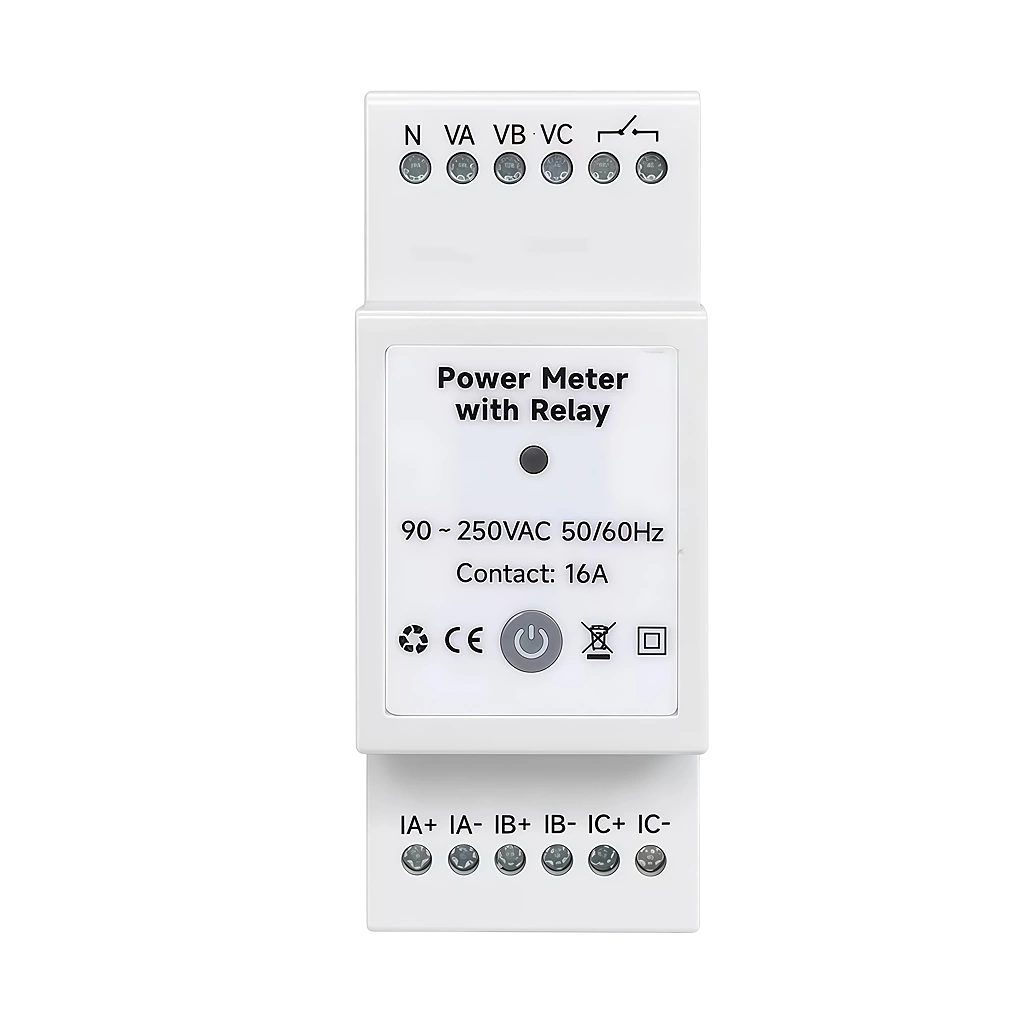

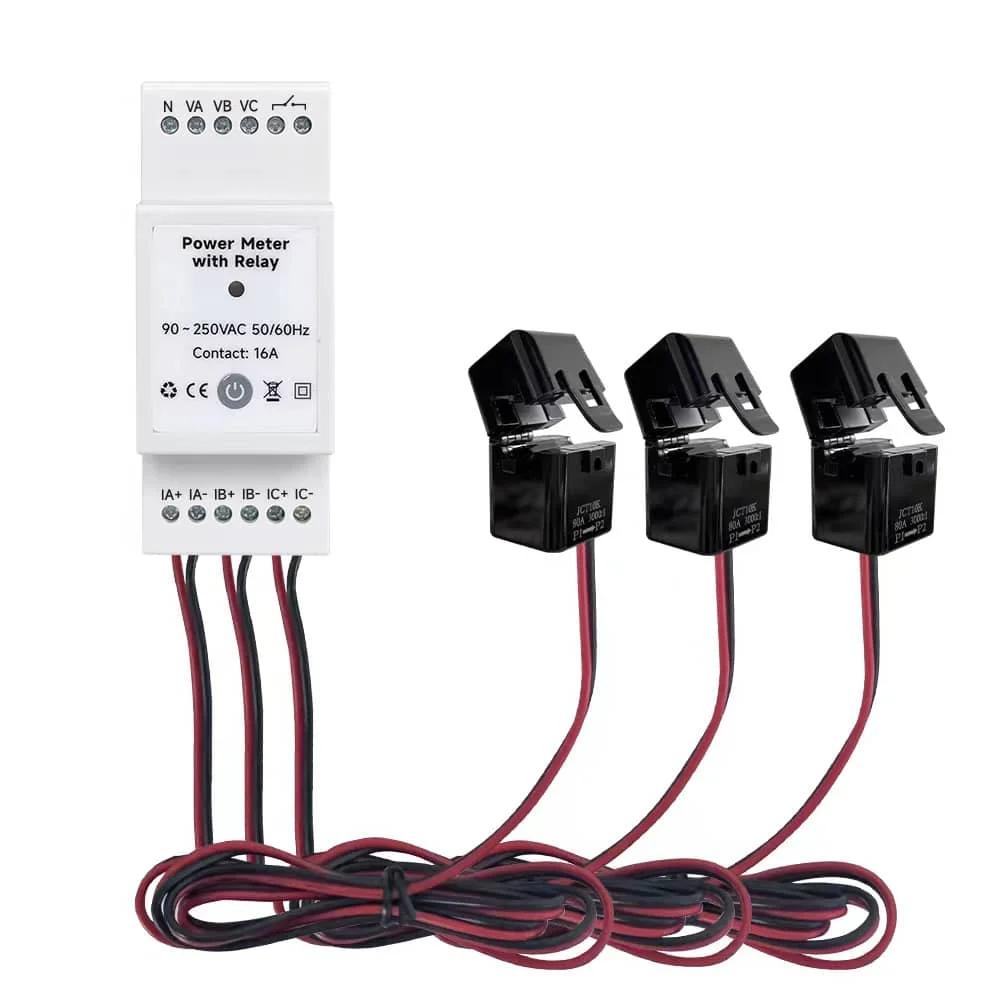

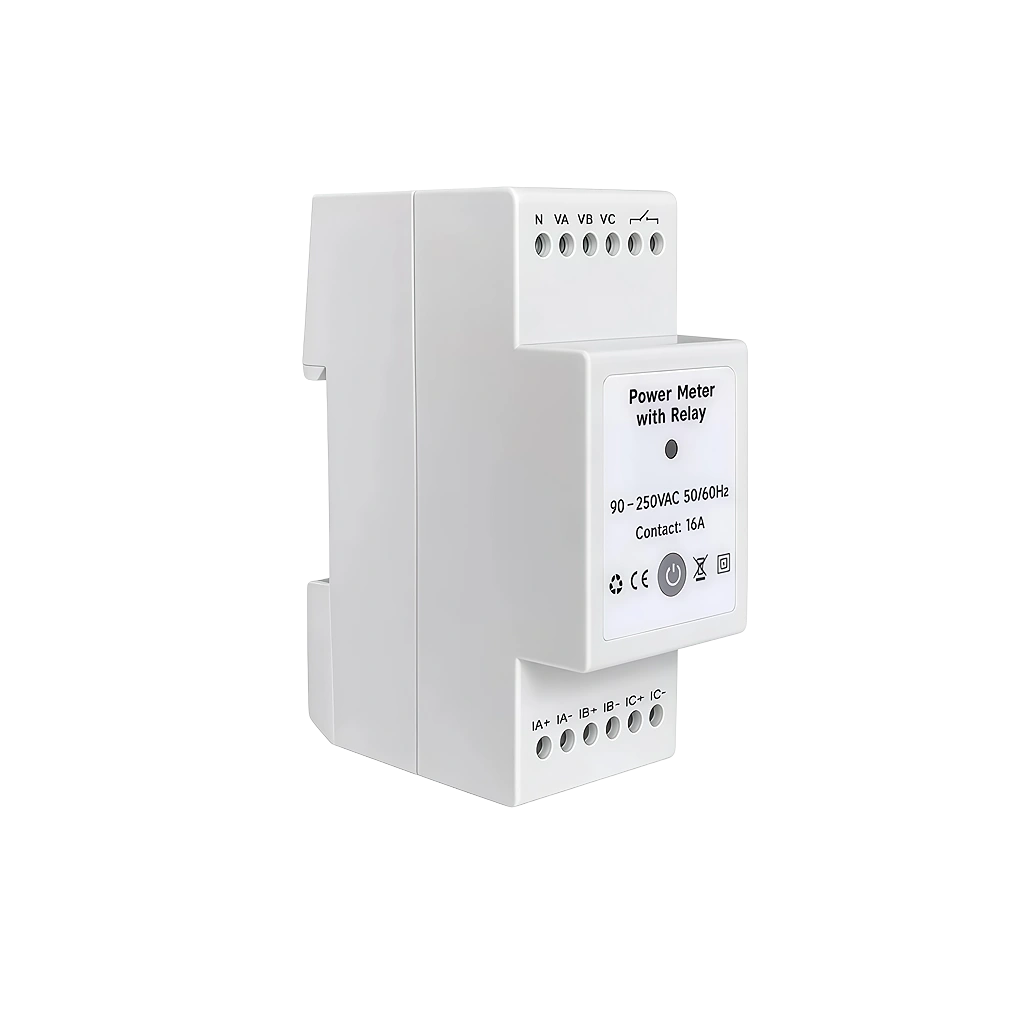

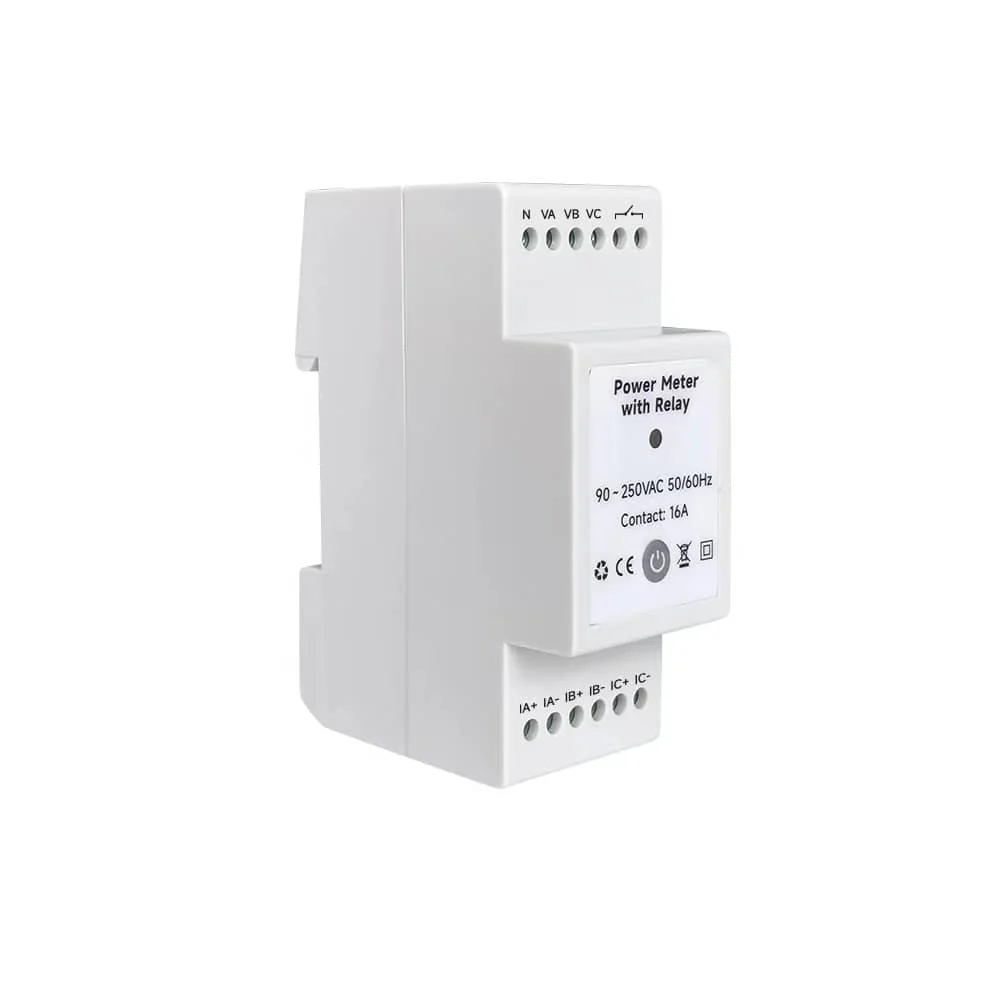

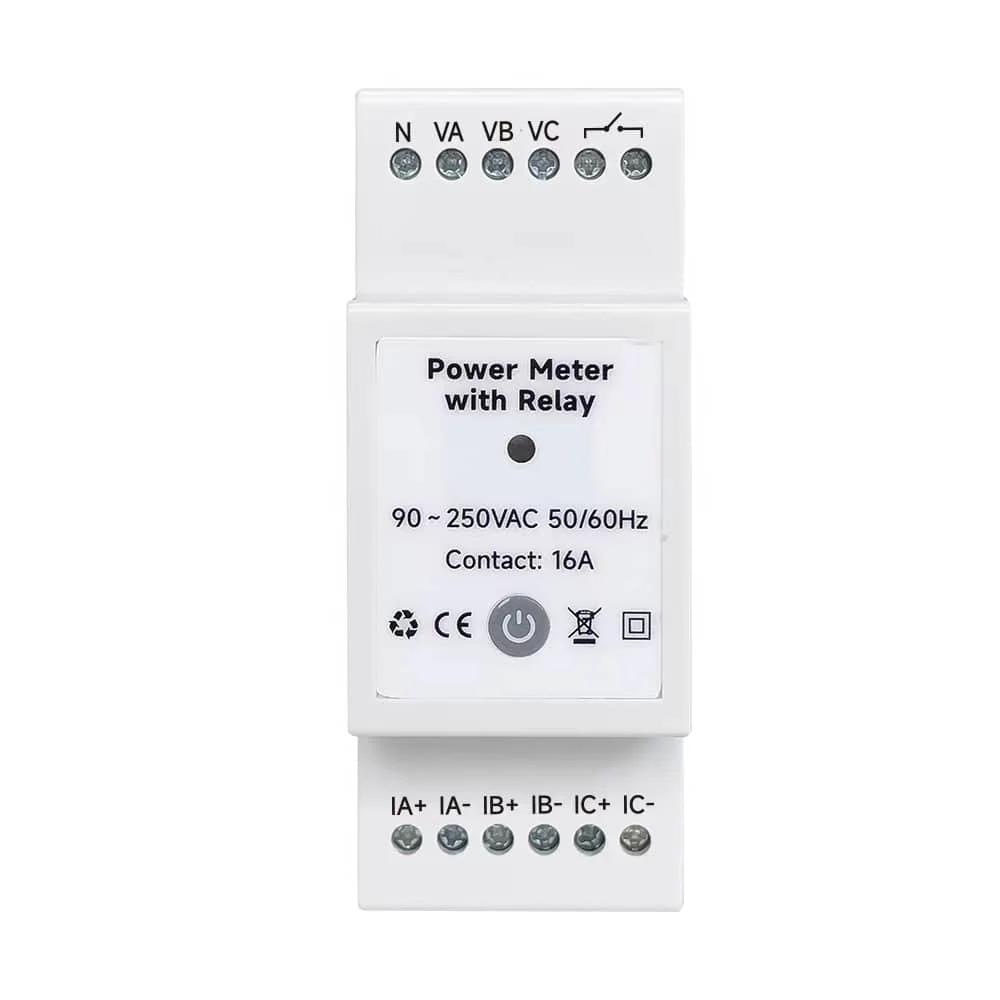

WattNet-3R DIN-Rail Relay Meter Monitor
Combine energy metering with a DIN-rail relay output. The switching function needs its own load and control-circuit assessment, separate from the CT measurement range.
Before you order Available to order.
Review the system and installation requirements before ordering. Guides and support can help you prepare; they do not approve an installation.
- DIN-rail relay
- DIN space
- App experience
Mount DIN
Relay 3R

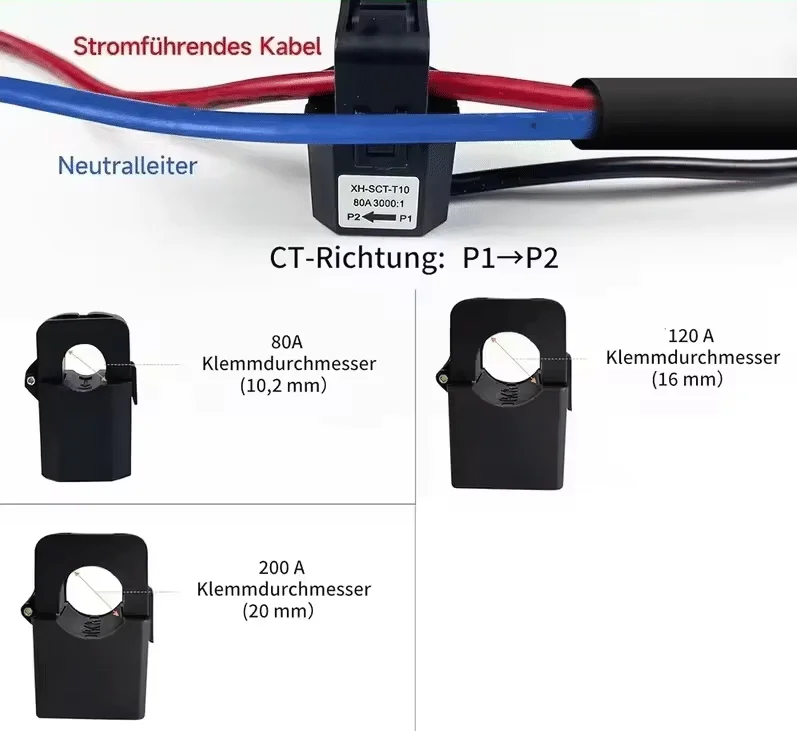

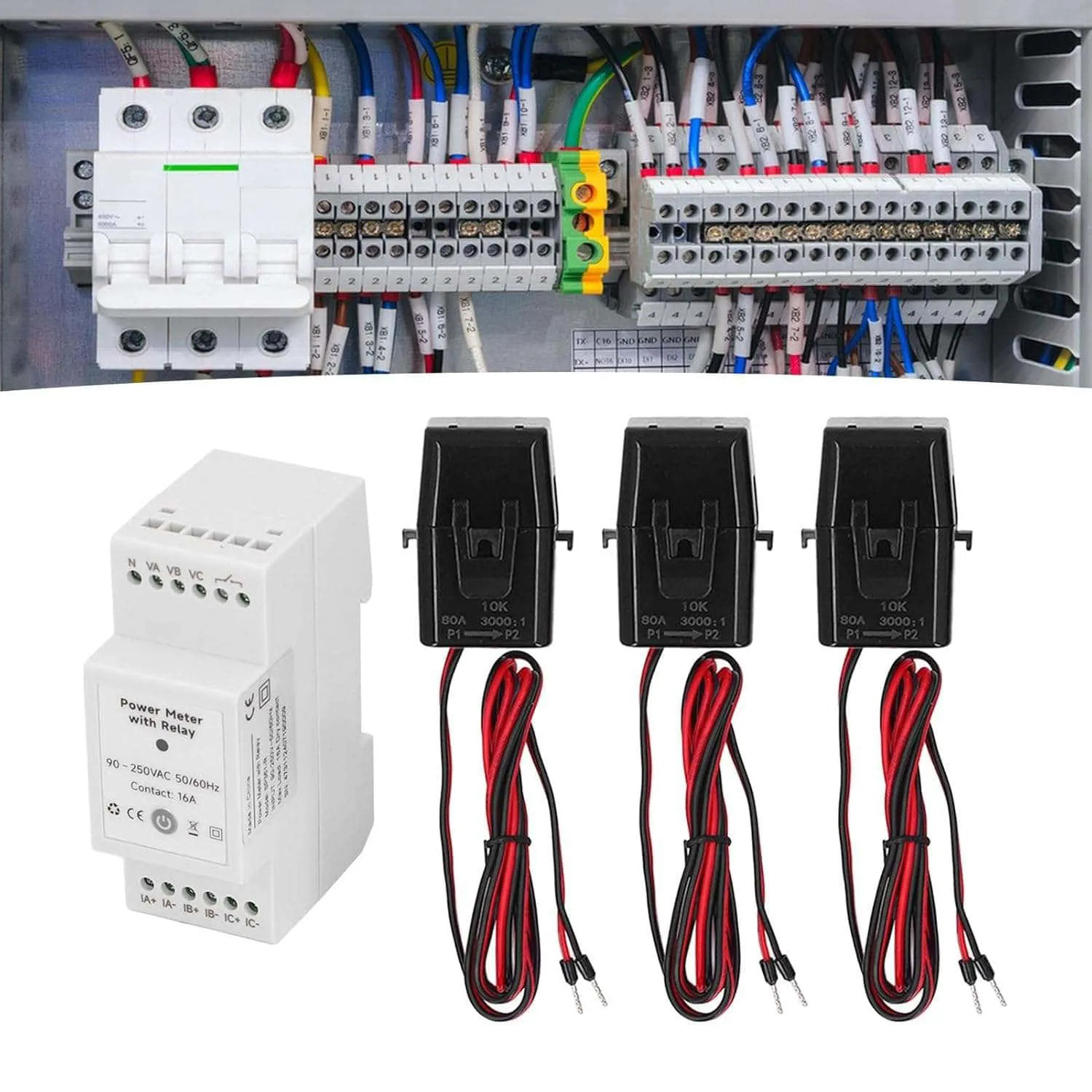

CT kits Options
Install Qualified
Supply, relay output and physical size.
- Operating supply
- 90–250 V AC, 50/60 Hz
- Relay output
- 16 A dry contact; not the CT measurement range
- Manual overall dimensions
- 90 × 35 × 65 mm
- Measurements
- Voltage, current, power factor, active power and frequency
- Connectivity
- WiFi 802.11 B/G/N20/N40; Bluetooth 5.2 Low Energy
- Operating environment
- −20°C to +55°C; ≤90% humidity, non-condensing

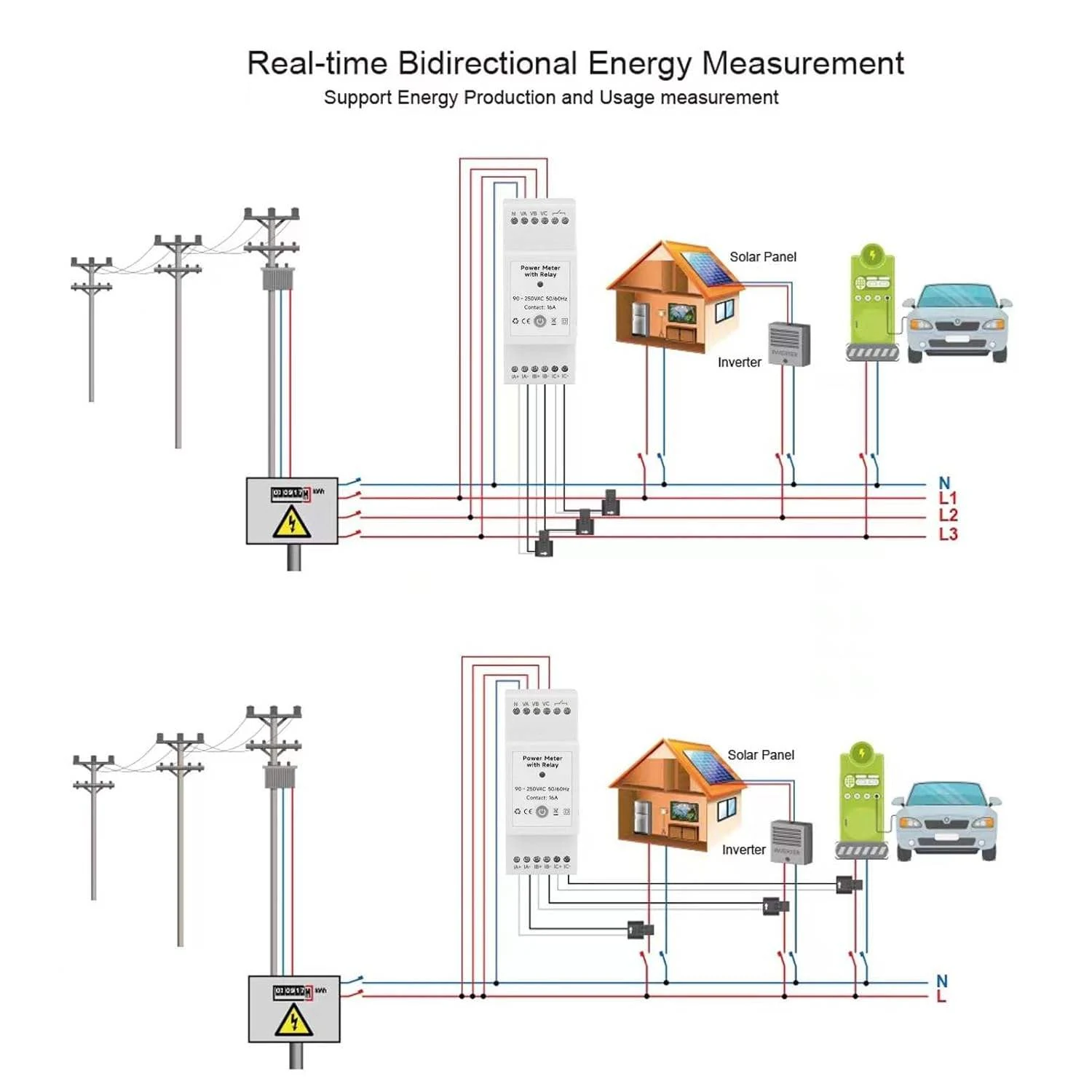

Resolve fit before ordering.
The supplier drawing labels body and projection dimensions separately. Use the manual's overall dimensions and have a qualified installer confirm enclosure clearance and the controlled equipment's requirements.
A larger CT option does not increase the 16 A relay output rating. These documented specifications do not approve a particular load, supply arrangement or installation.
Request WattNet-3R documentation WattNet-3R
Does a CT rating define relay capacity?
- 01
What it measures or controls
No. A CT measures current; the relay controls a circuit. A larger CT option does not authorize switching a larger load. Have the installer assess the documented relay output, controlled equipment and DIN-rail space separately.
- 02
WattNet-3R installation requirements
DIN space, CT size, panel context, and relay use boundary
- 03
Operating limits
Relay and panel work must be reviewed against local requirements and product documentation.
Product role

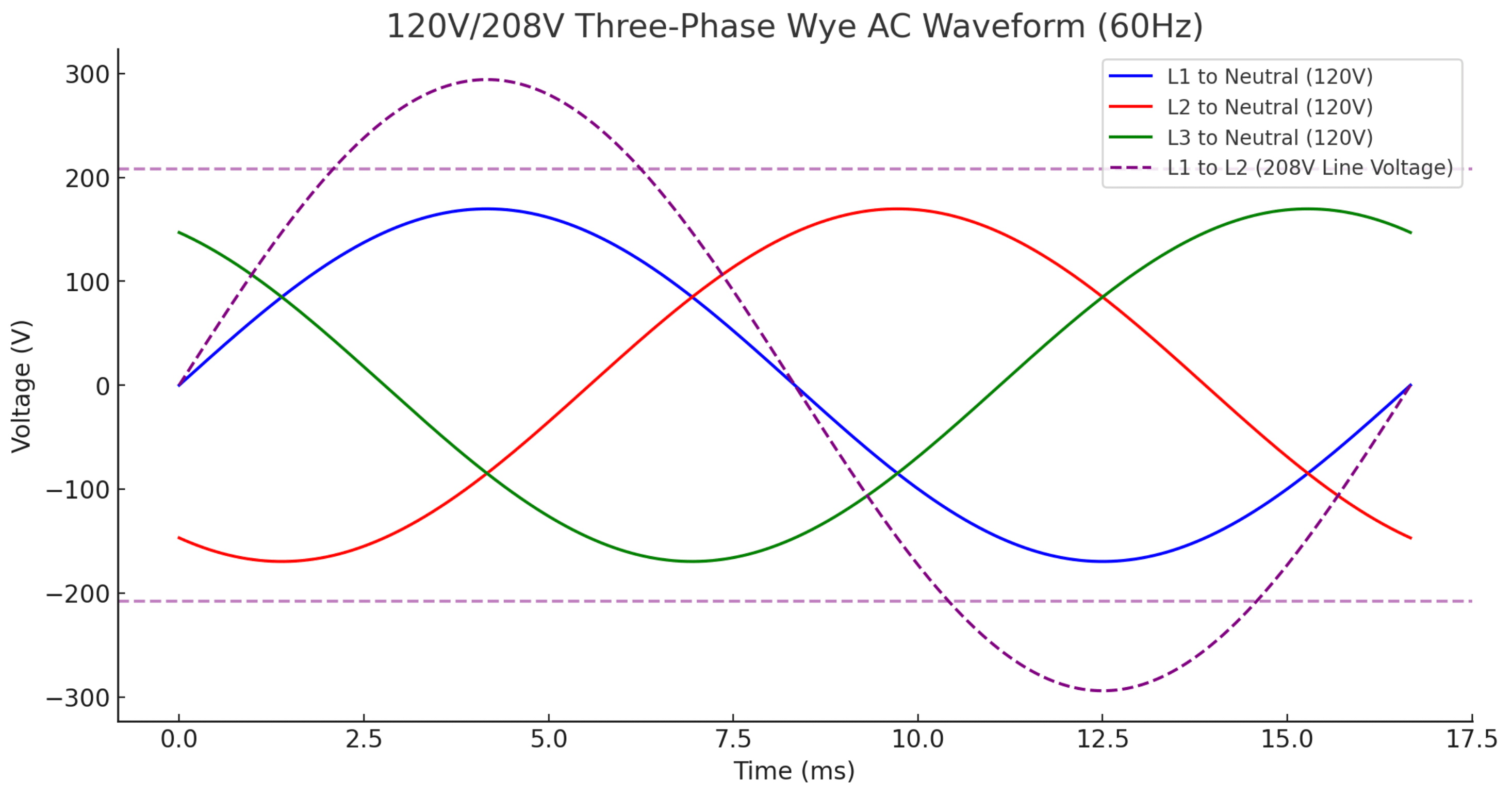

WattNet-3R: DIN-rail relay and three-phase CT monitoring

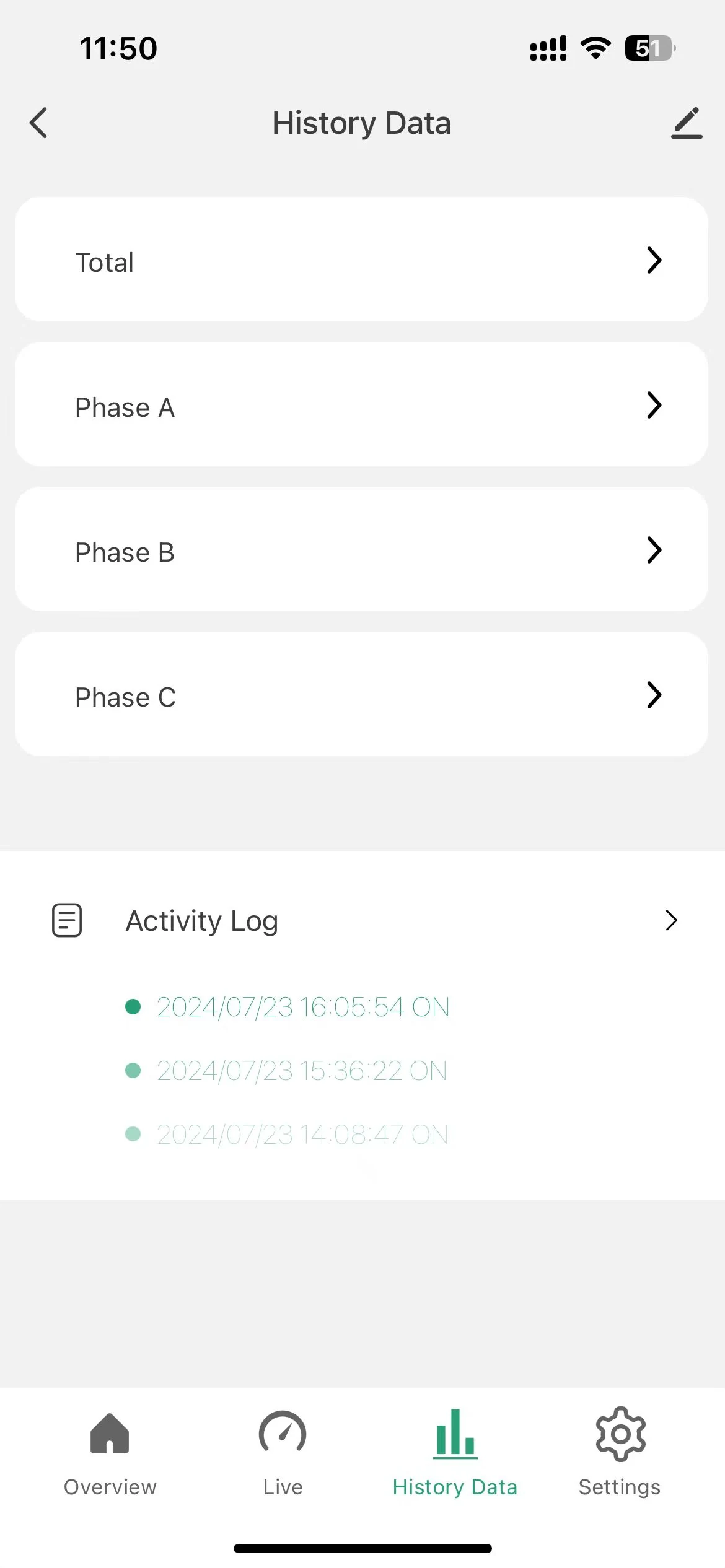

Available readings and controls: multi-channel status, total energy, and switch mode.
- Primary function
- DIN-rail relay and three-phase CT monitoring
- App or status
- multi-channel status, total energy, and switch mode
- Installation context
- qualified electrical panel installation
- Important limit
- Relay and panel work must be reviewed against local requirements and product documentation.
Hardware and use

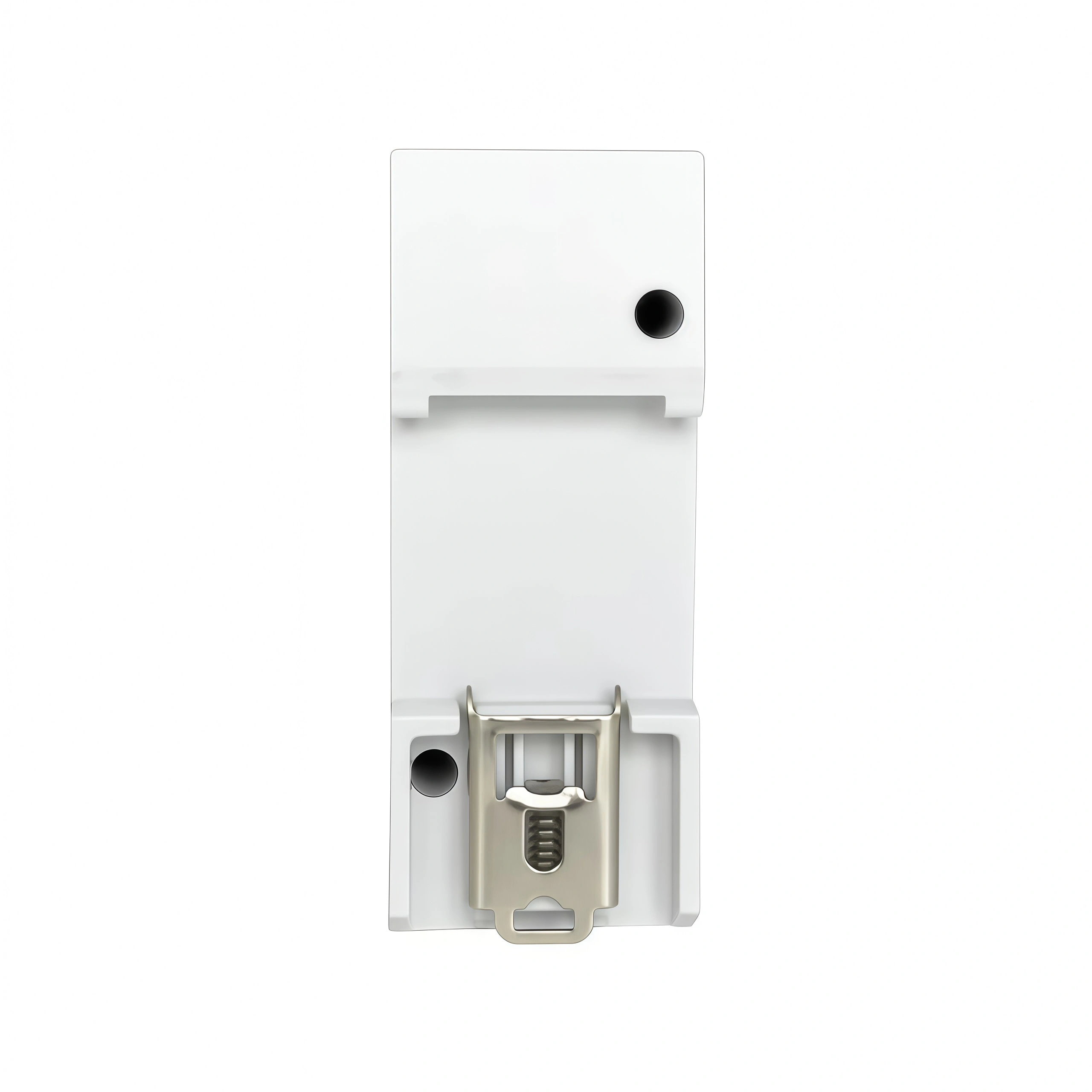

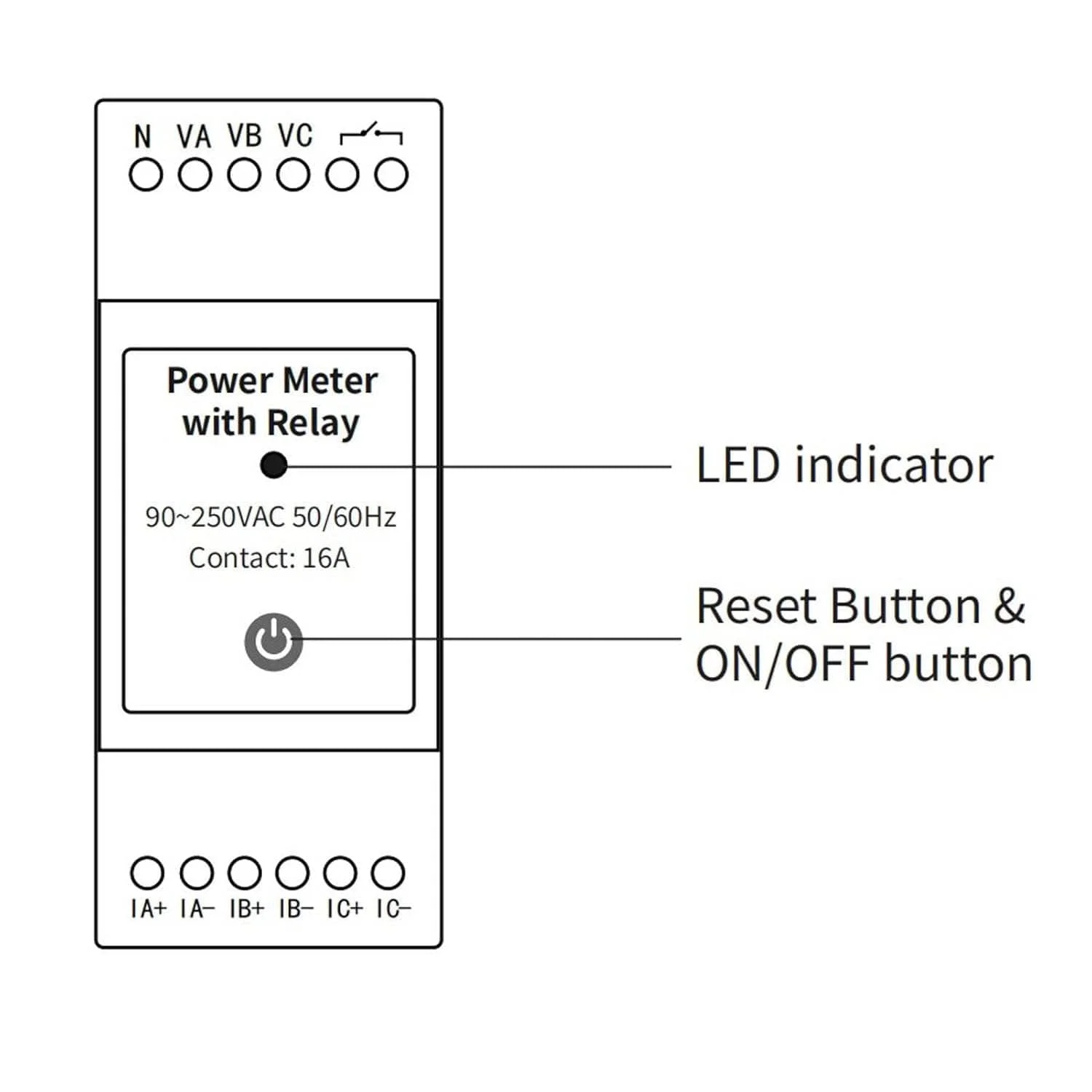

See the product from three useful angles.

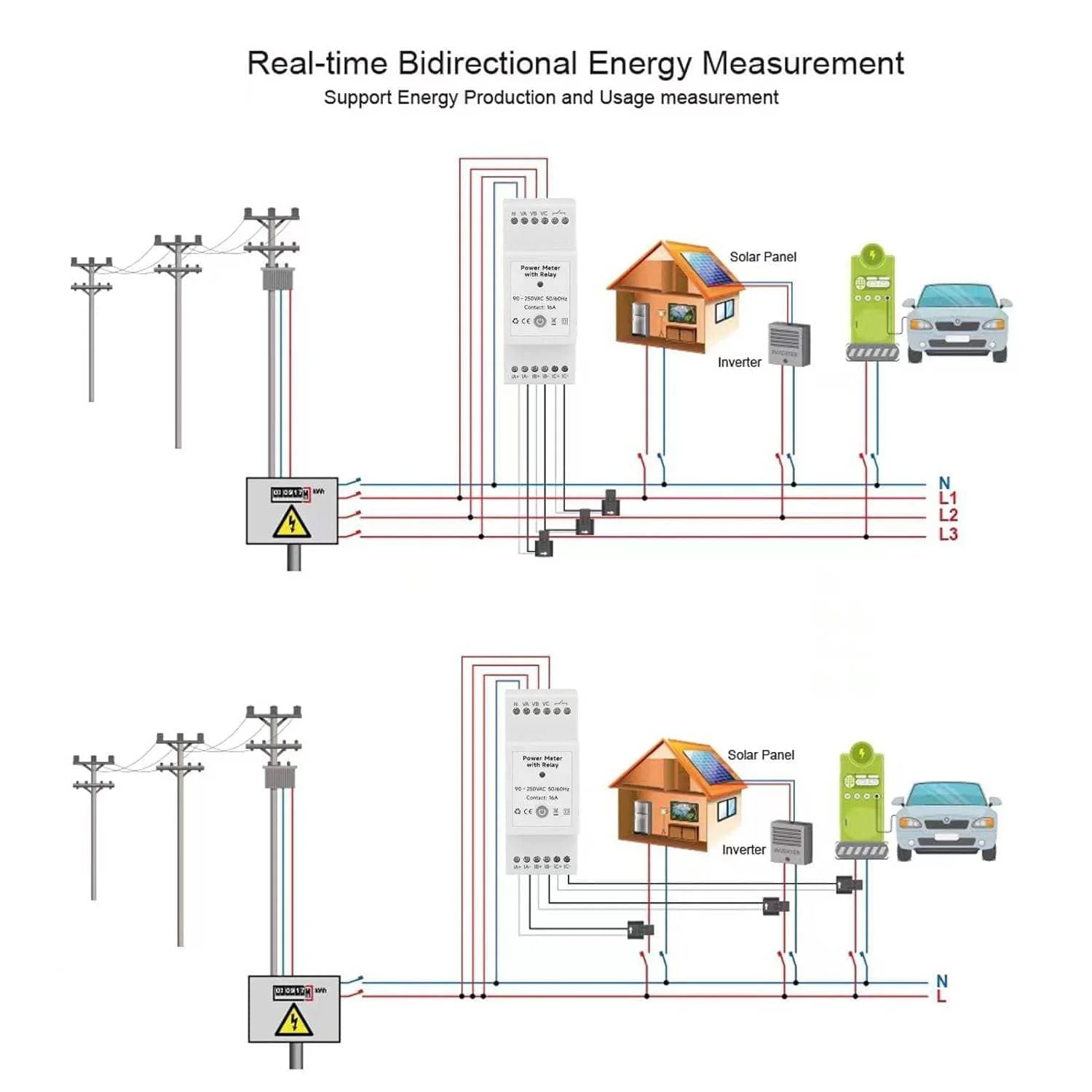

Hardware views identify the device, setup images clarify installation context, and app scenes show the supported experience.
App insight
See how WattNet-3R appears in the connected experience.
The available app and status views support multi-channel status, total energy, and switch mode.
Before you choose
Check the conditions that determine WattNet-3R fit.
Installation: qualified electrical panel installation.
- DIN space
- CT size
- panel context
- and relay use boundary
Product scope
- Model
- WattNet-3R
- Primary use
- DIN-rail relay and three-phase CT monitoring
- App experience
- multi-channel status, total energy, and switch mode
- Fit to confirm
- DIN space, CT size, panel context, and relay use boundary
Before choosing
- Installation
- qualified electrical panel installation
- Support boundary
- Relay and panel work must be reviewed against local requirements and product documentation.
Guides and answers
Find the detail you need before ordering.
Which details should I send about my WattNet-3R installation?
Include the equipment model and these site details: DIN space, CT size, panel context, and relay use boundary. Use existing records and safely accessible labels; do not open electrical equipment to prepare a request.
Next step
Explore WattNet-3R options.
For DIN-rail relay and three-phase CT monitoring. View the available options above or send the installation details to product support.
